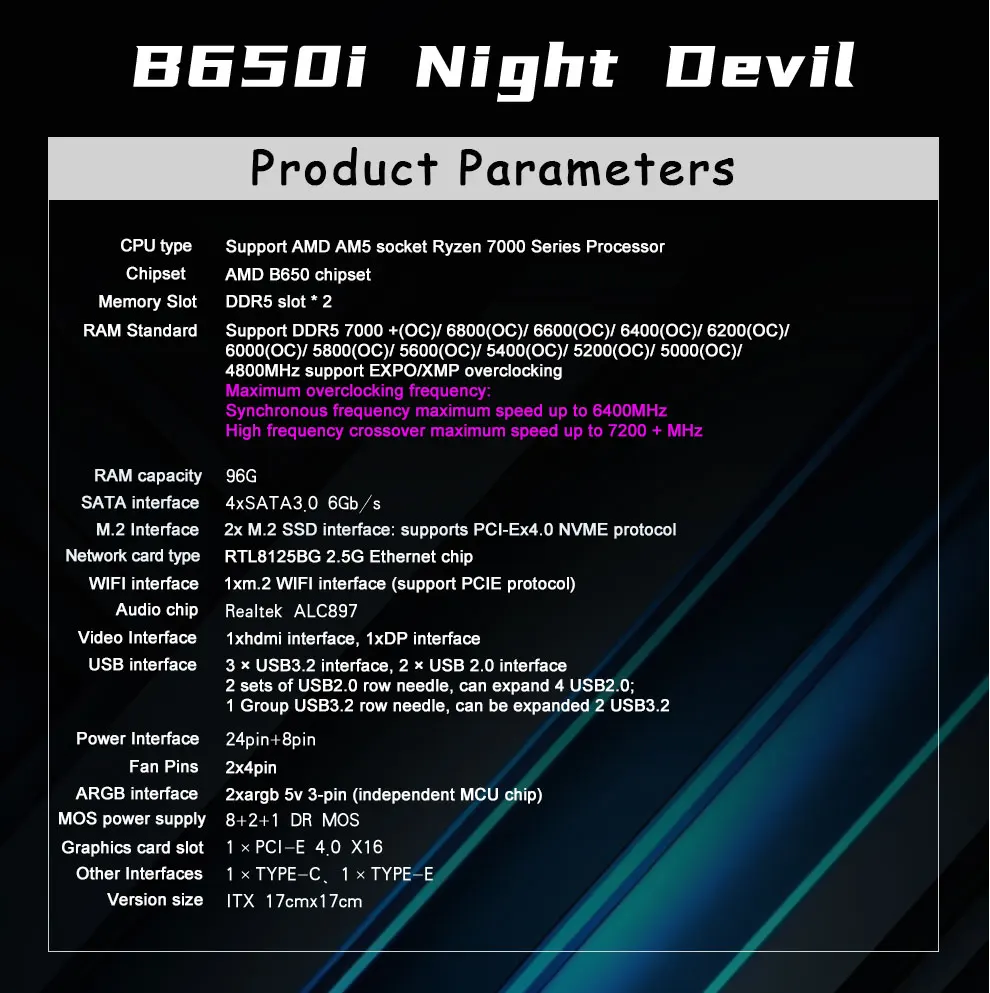

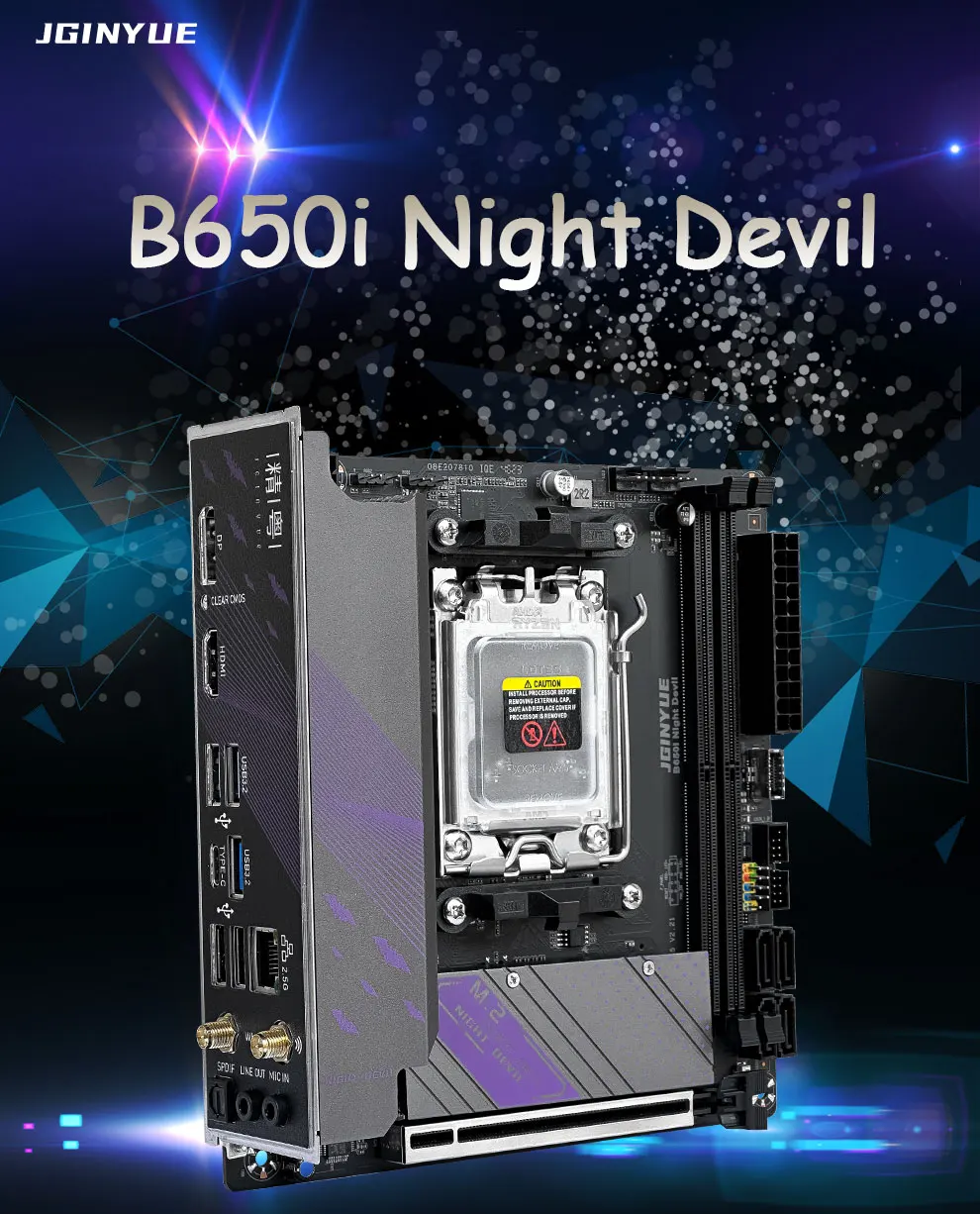

Jginyue B650I Night Devil

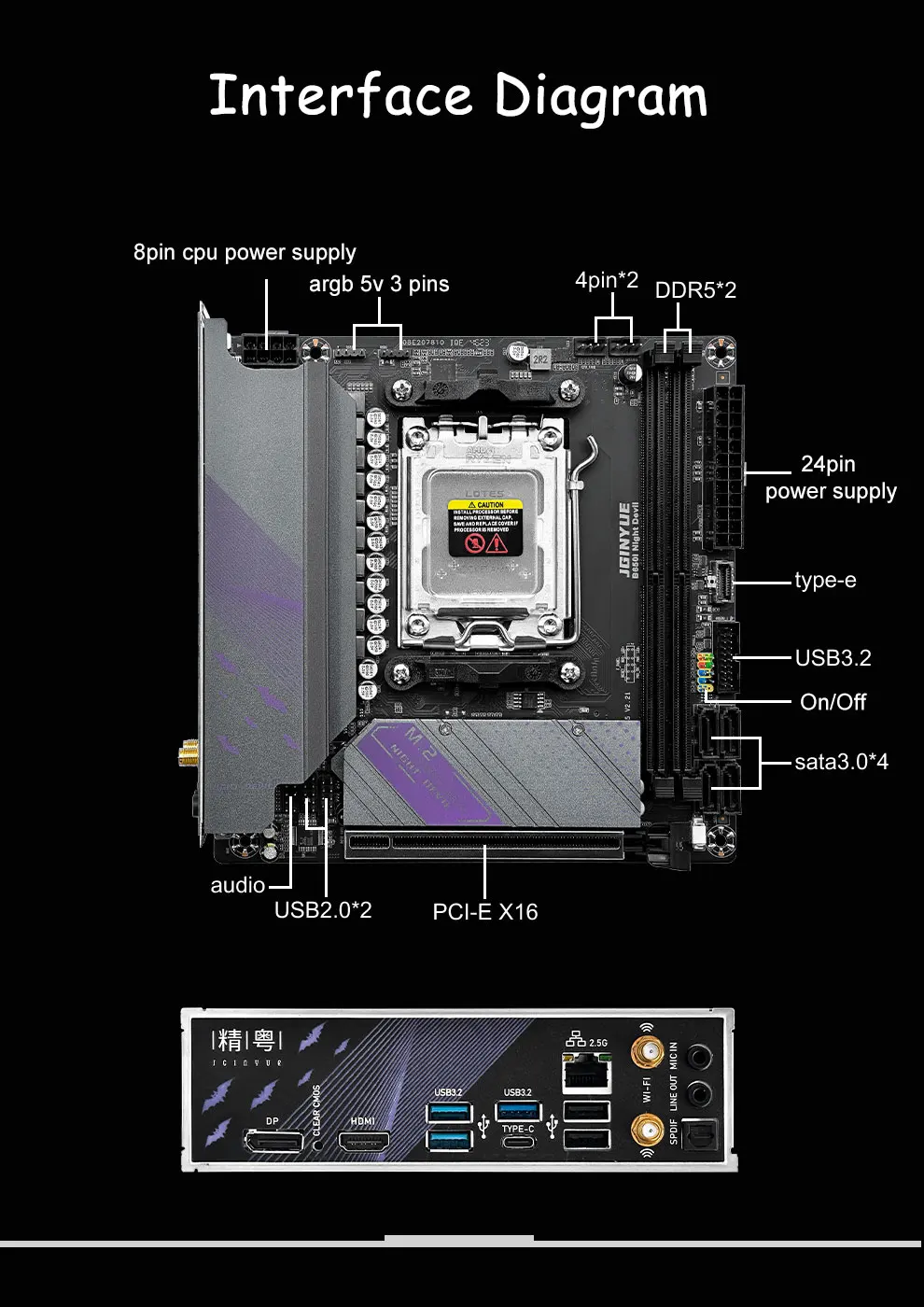

  • Motherboard model
  • B650I Night Devil
  • Processor type
  • Supports AMD AM5 slot Ryzen 7000 series processors
  • Chipset
  • AMD B650 chipset

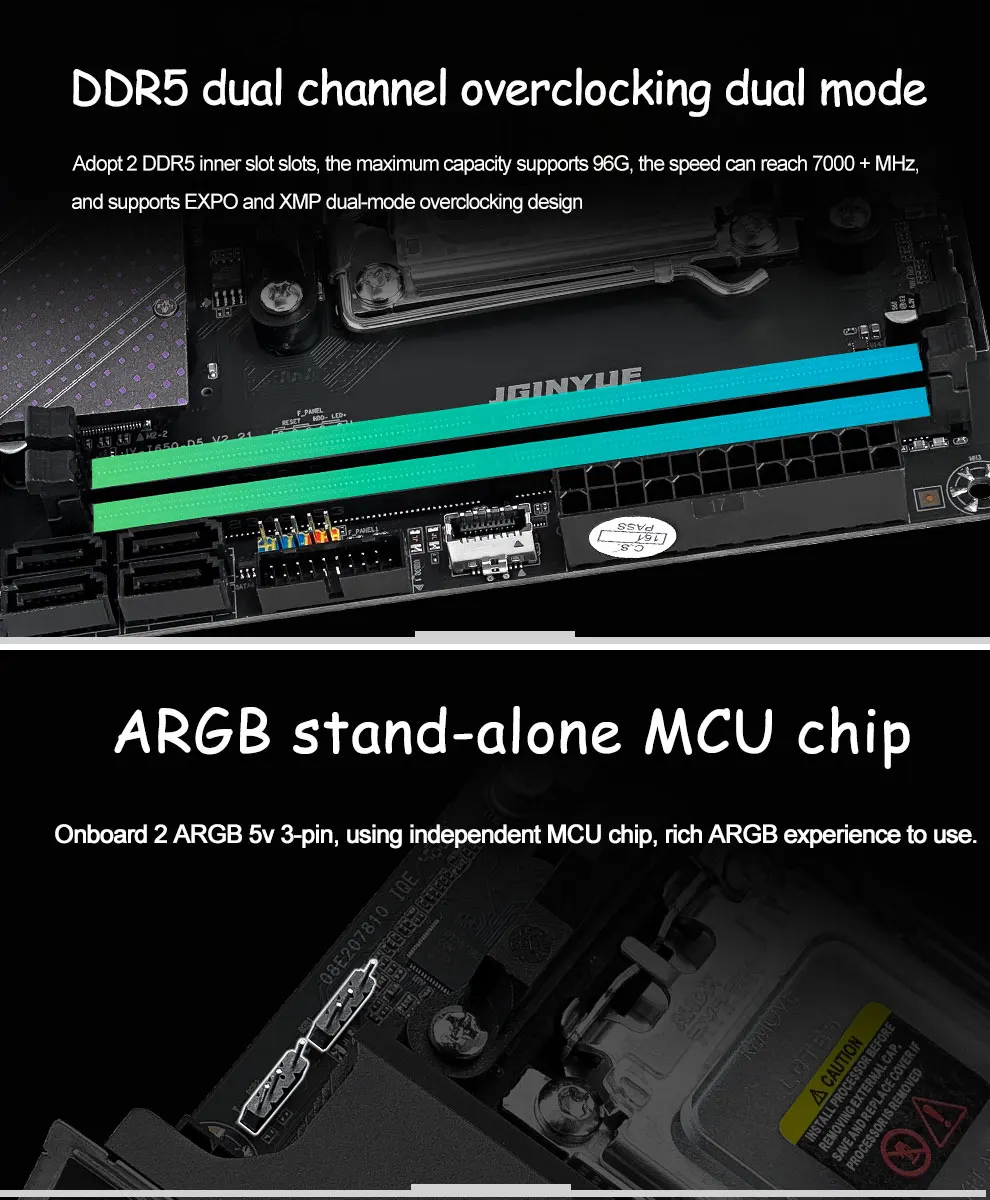

  • Memory slot
  • Two DDR5 slots support DDR5 7000+(OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz. Supports EXPO/XMP overclocking. Maximum overclocking frequency: synchronization frequency maximum speed up to 6400MHz (synchronization frequency performance is the best, recommended). High frequency division maximum speed up to 7200+MHz
  • Maximum memory capacity
  • 96G
  • SATA interface
  • 4xSATA3.0 6Gb/s

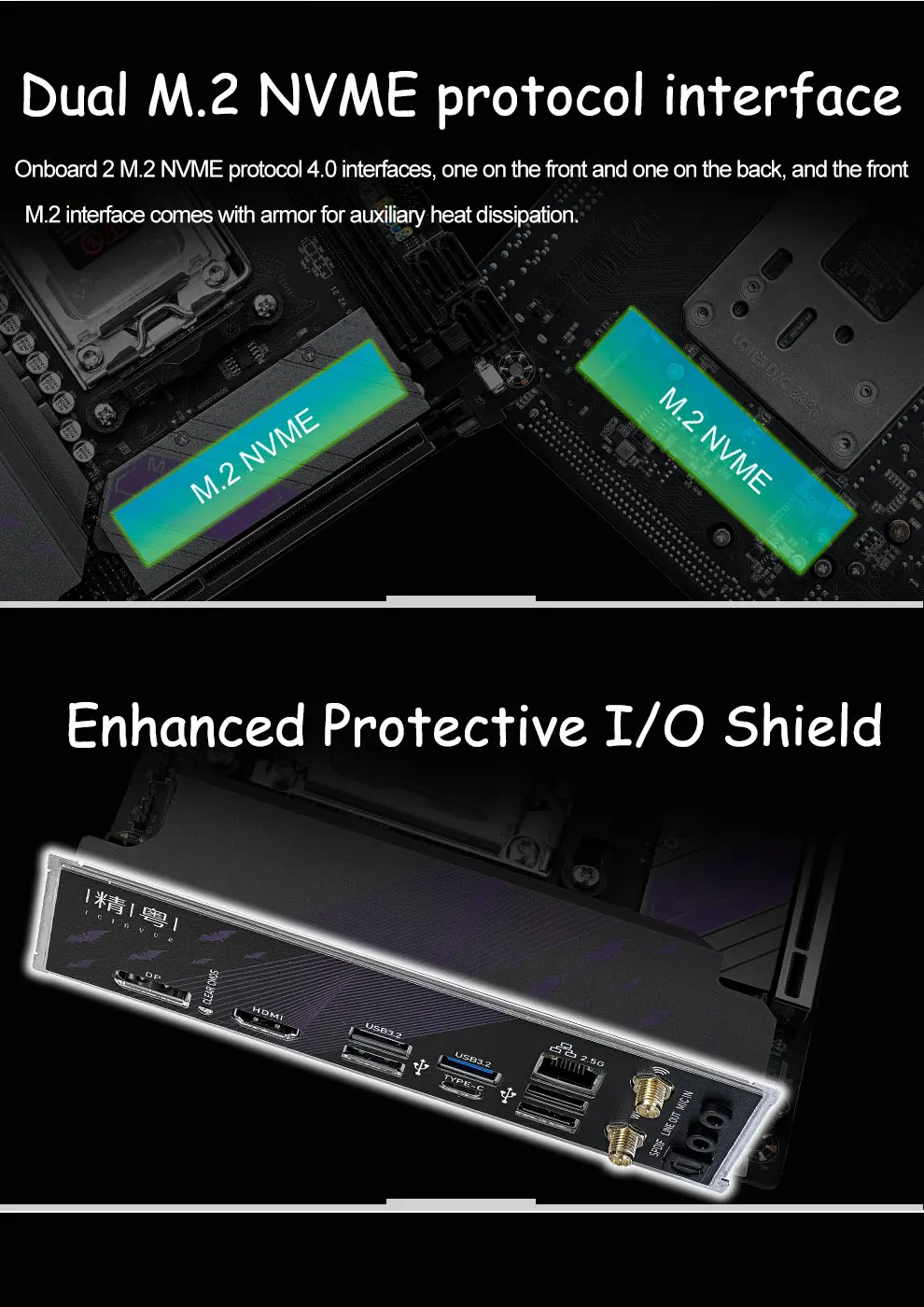

  • M. 2 interfaces
  • 2x M.2 SSD interface: Supports PCI-Ex4.0 NVME protocol (one on the front and one on the back)
  • Network type
  • RTL8125BG 2.5G Ethernet network chip
  • WiFi interface
  • 1xM.2 WIFI interface (supports PCIE protocol)
  • Audio chip
  • Realtek ALC897
  • Video interface
  • 1xHDMI interface, 1xDP interface
  • USB interface
  • 3 x USB 3.2 interface, 2 x USB 2.0 interface, 2 sets of USB 2.0 pins, expandable 4 USB 2.0 pins, 1 set of USB 3.2 pins, expandable 2 USB 3.2 pins
  • Power interface
  • 24pin+8pin
  • Fan pin
  • 2x4pin pin pin arrangement
  • ARGB interface
  • 2xARGB 5V 3-pin (independent MCU chip)

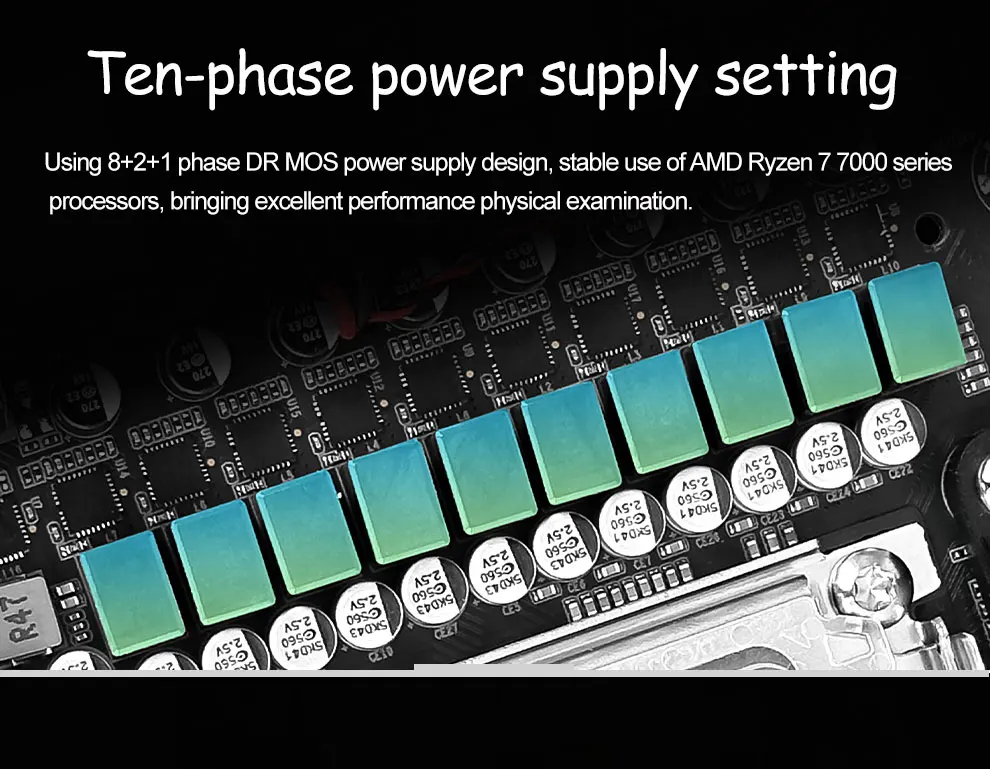

  • Number of power supply phases
  • 8+2+1 phase DR MOS power supply
  • Graphics card slot
  • 1 x PCI-E 4.0 X16

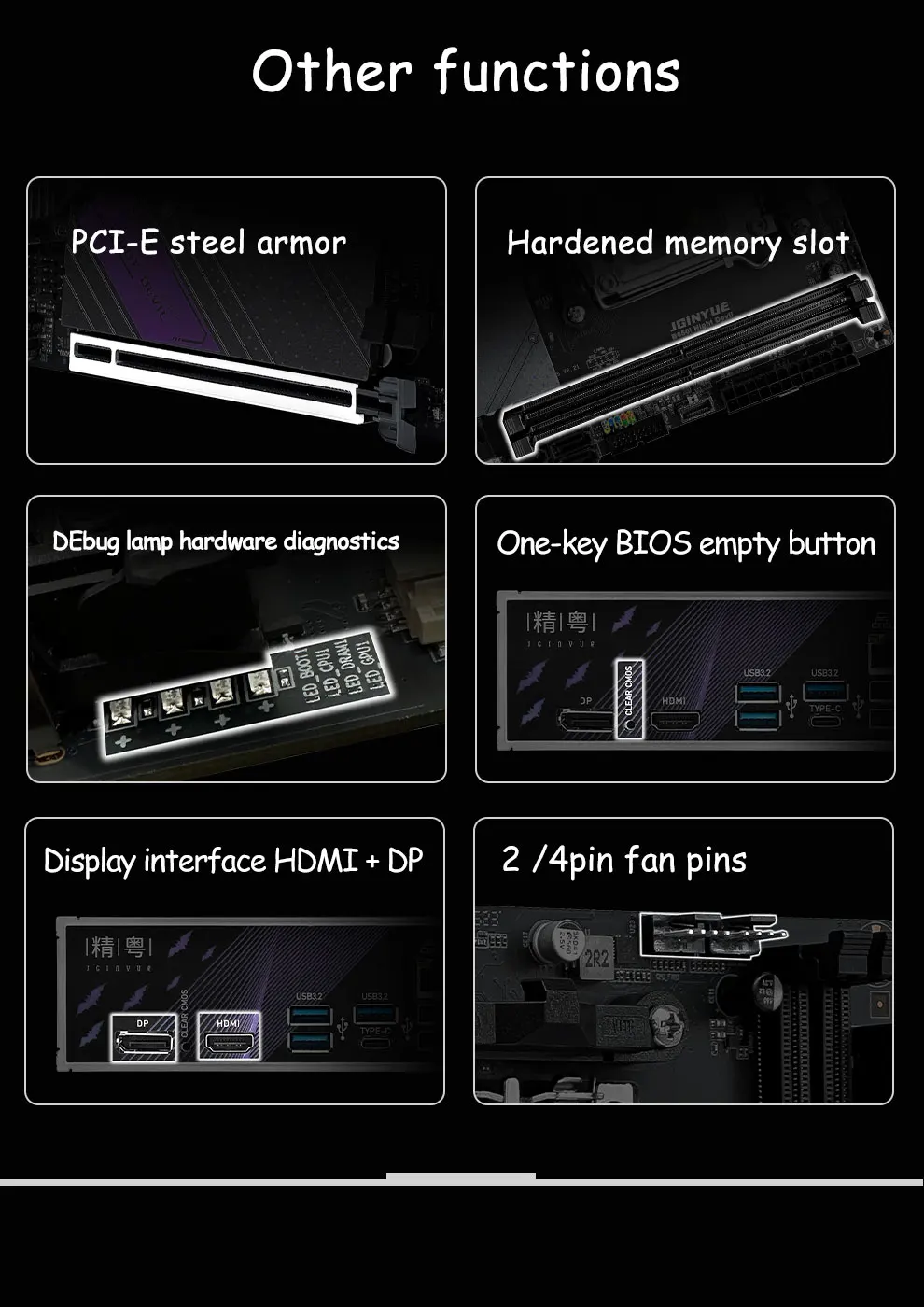

  • Other interfaces

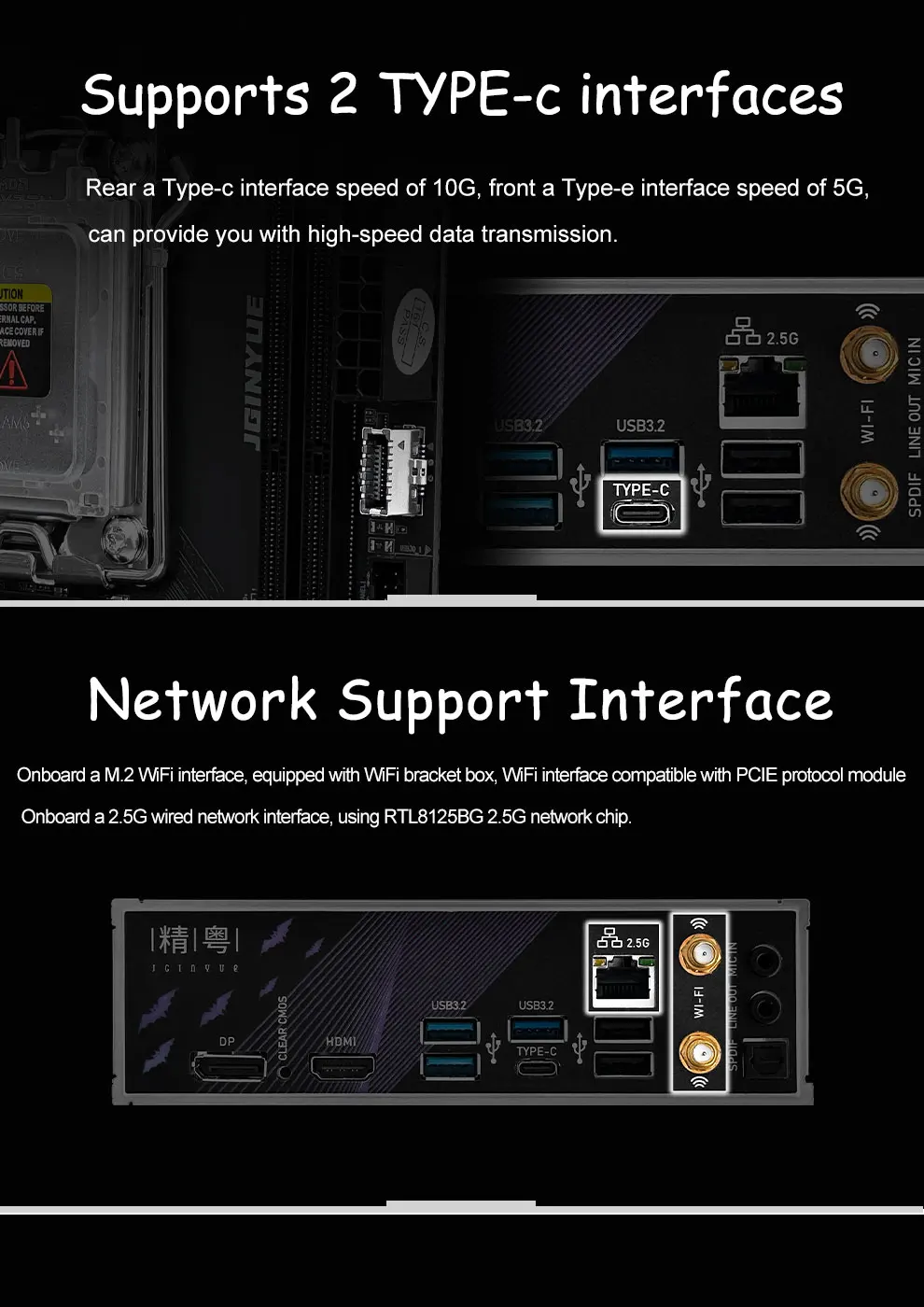

  • 1x rear TYPE-C (10G), 1x front TYPE-E (5G)

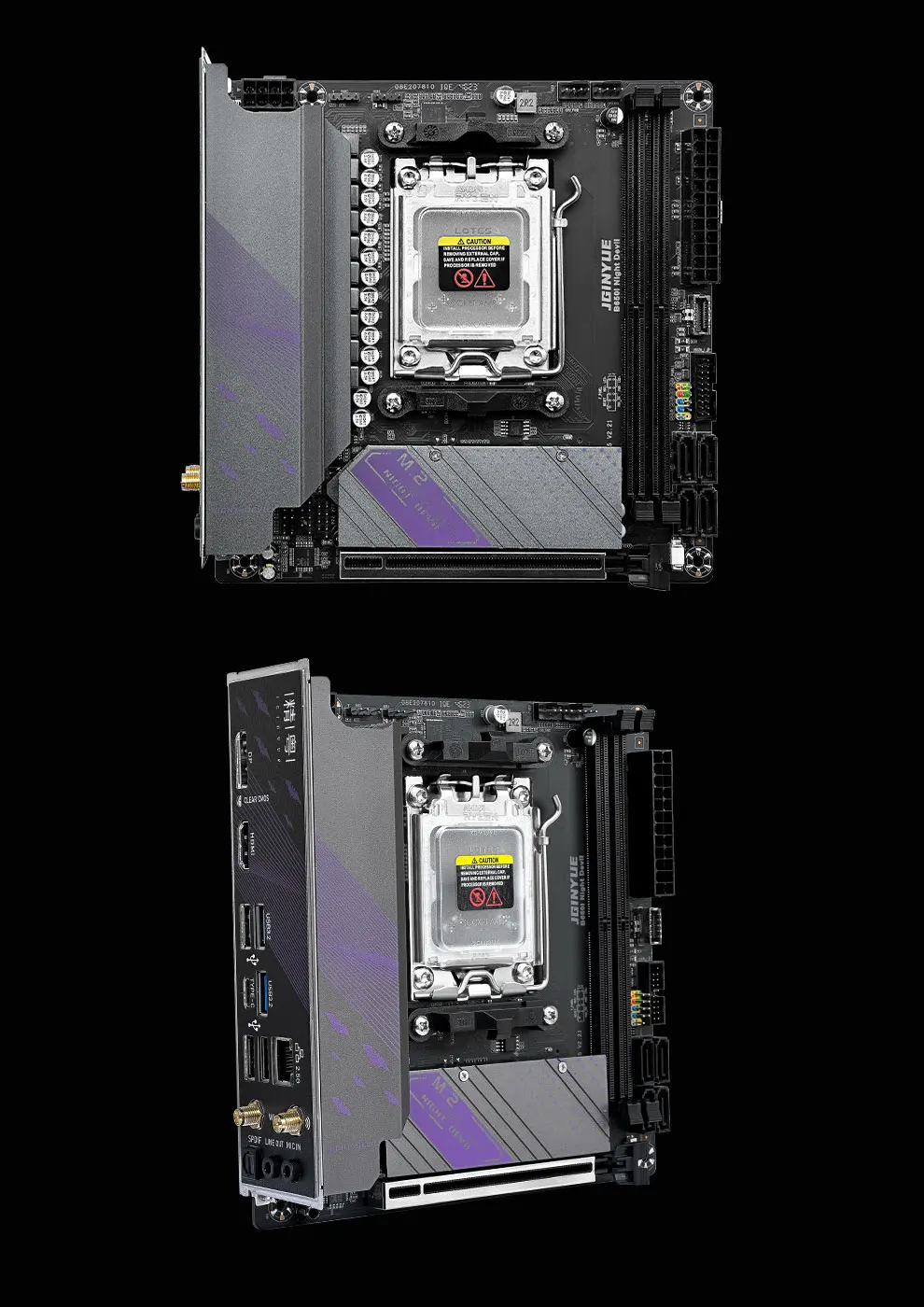

  • Pattern specifications
  • ITX 17cmx17cm
